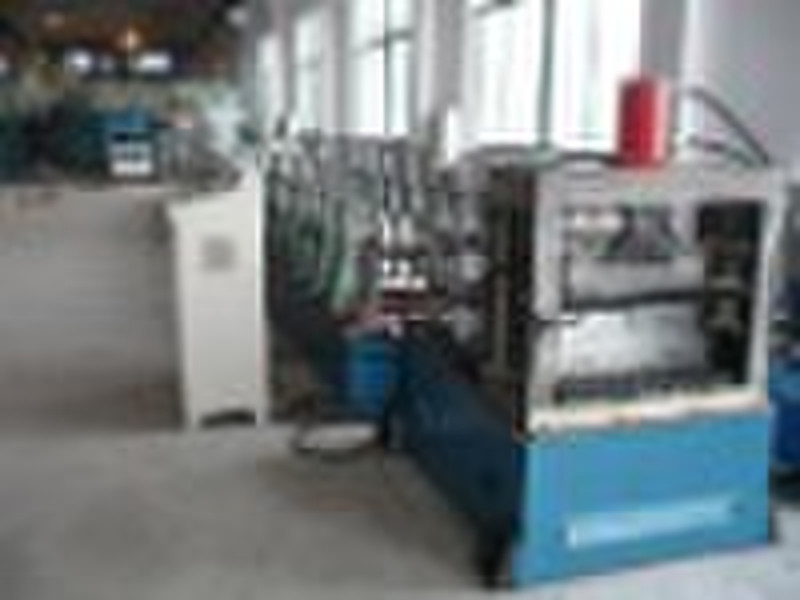

anode plate roll forming machine

Production line to manufacture anode plate for cement plant1 forming process Decoiler-Guider-forming-punching-cutting-to-length-collection table 3.1 material capacity St-37-3δ1-1.5material:St-37-3δ1-1.5 245≤§≤500 material width:245≤§≤500 3.20-10/production line:0-10M/min .it can be adjusted . 3.328X3 layout of area:(L)28MX(W)3M 3.438kwTotal power:about 38kw 4composing of machine No.NameUnitNo. remarks: 1automatic decoilerset12guider&assisant rackset43forming machineset14forming mouldset3Produce three kinds of profiles5 punching rackset16punching mouldset63Three spare mould7cutting rackset38cutting bladeset33Three spare cutting blade9hydraulic stationset110collection tableset111electrical systemset15 Main parts technical parementer 51Automatic decoiler 5.1.1,3T Hydraulic:Inner expanding,loading 3T 5.1.2320 508 mm,1200 Steel coil inner diameter:320 508 mm. Steel coil outer diameter:1200 52Guider rack: 5.2.1, One set of horizontal rollers,two sets of vertical rollers 53Forming machine Forming frame:23 racks 532≤500,Max feeder width:≤500 Material thickness:1.0≤≤1.5 The diameter of axis:¢70mm,material40Cr.heating and quenching treatment 534GCr15,,HRC58-62º, the material of roller:GCr15,the whole quenching,hardness58-62º,chromeplate on surface Motor power:22kw frequency conversion,ZQ500reducer Drive type:Each frame equipped a decrease gearing box ecpect the main power frame 5.4Punching device 541 Punching reck:four columniation type 542Cr12 material punching moulding:Cr12 5.5 cutting device Cutting type:hydraulic cutting blade 552Cr12material of cutting blade:Cr12 5525.5KW hydraulic station power:5.5kw the length of collection table:14M Electrical control:PLC control ,LCD touch screen 6 warranty time:one year 7120 delivery time:120 days 9 shippment:FOBSHANGHAI by sea
