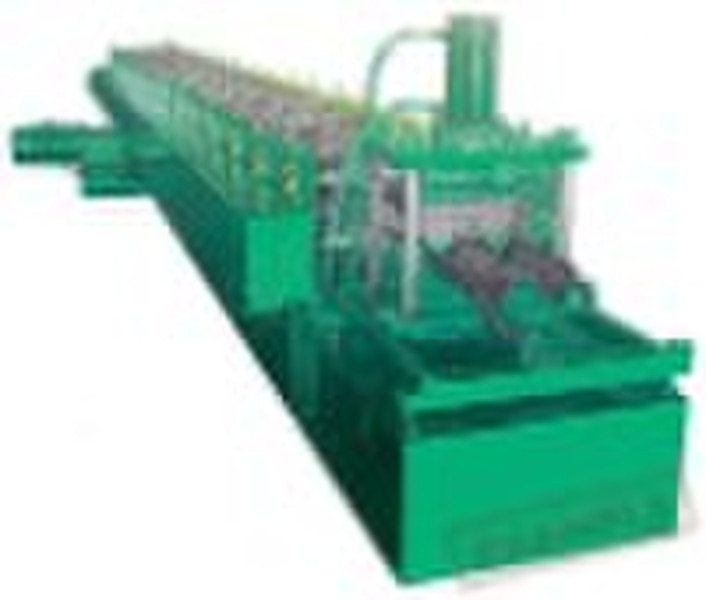

Highway Guardrail Forming Machine

Composing of Equipment: 1,Decoiler 1set 2,Leveler with 9 group rolls 1set 3,315T Hydraulic Pressure Machine1set 4,Punching & Cutting Mould1set 5,Cutting-to-length 1set 6,Feeder 1set 7,Forming Machine1set 8,Style 31085 of Forming Mould1set 9,Vertical roll rack 4setsMass technique parameter of Production Line: 1,Capacity of equipment: about 76.9kw 2,Speed of manufacture:10000-15000mm/min, Or 2-3pcs/min(4320/piece) 3,Thickness of product: 3mm 4,Highness of product:100mm 5,Width of Steel Material: 500mm 6,Diameter of Roll:80mm Mass technique Parameter of part equipment: 1,Decoiler Style: Decoiler with two tapering shape. Load:4T, Power:.2.2kw Width of producing Material: 480mm Max Capacity of Decoiler: 4000T Coil Inner Diameter: 460-510mm Coil Outer Diameter: 1200mm2,Leveler Style: First & postpositioned guidance Total: 9sets of roller: 4sets of roller for delivering, 5sets of roller for leveling Power:5.5kw Main device Material of Leveling Rollers: 40Cr/HRC48-52 Diameter of shaft: 118mm Thickness of leveled plank:2-4mm Width of leveled plank:300-520mm The machine uses the ZQ350 speed reducer3,315T Hydraulic Pressure Machine.(Standard Style) Power:22kw Hydraulic Pressure Machine is from famous suppliers in China. 4,Clamp feeding equipment with two sets clamp parts. Power:2.2kw5,Forming machine Style of Machine:GY180 Group of Forming: 12 groups Power of Forming Motor: 45kw Style of retarder: ZQ650 Transmission way :Every rack has one gear power distribution box. Compared with chain drive and gear drive ,it has long life high speed and lower noise. Material of roller: 40Cr. Material of Forming Mould:GCr15, Quenching Disposing HRC56-62.6,Installation Dimension(L*W*H):33000mm*3500mm*5000mm
