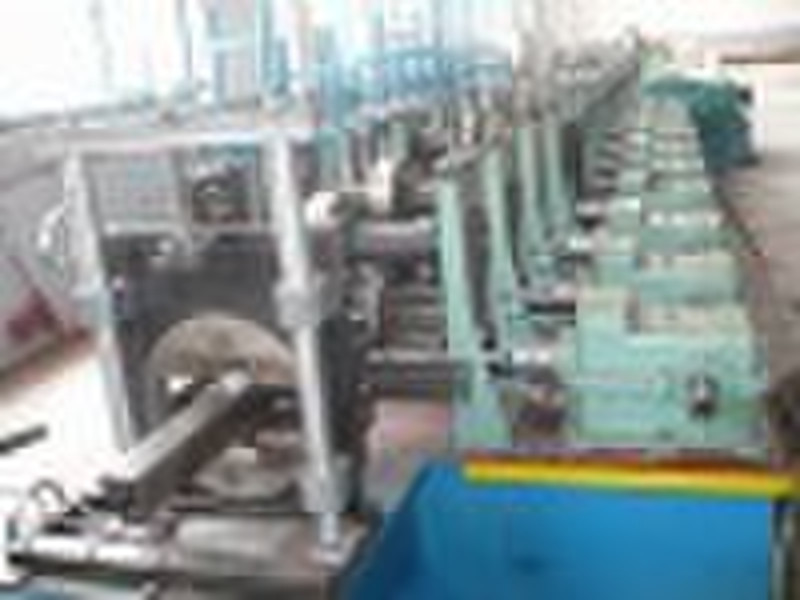

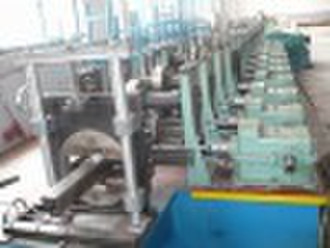

P beam roll forming machine

Roll forming craftwork Decoiler --- Guide,flatting --- Roll forming --- cutting-to-lengh --- collection table Unit performance 1, Machine capacity: width100-500mm, thickness:1-2mm 2, Product speed: 0-15m/min 3, Total power: about35.5kw 4, Occupy groud area: length 18m xwidth3m Each part main parameter: 1Decoiler: decoiler, Inner expanding , capacity:5T 2Guide Rack: two pairs of lever rollers and four pairs of standing rollers. 3 Flatting number: 9 sets 4 Roll forming a,Type: GY160 b,Rack: cast iron torii type, material:HT200 c, Roll forming rack: 22 sets d, The diameter of the roller axis:φ70mm, roller surface:400mm Material: 40Cr quenching treatment HB280 e, Drive type: every rack has one gear power diatribution box. f, Main power: 30kw frequency conversion, ZQ500 reducer g, Material:GCr15, Quenching,Hardness:HRC58-62º h, Assistant roller rack: 4 sets 5, Adjust part: Turkey emendation type(three-dimensional emendation) 6, cutting-to-lengthHydraulic press cutting, power: 5.5kw
