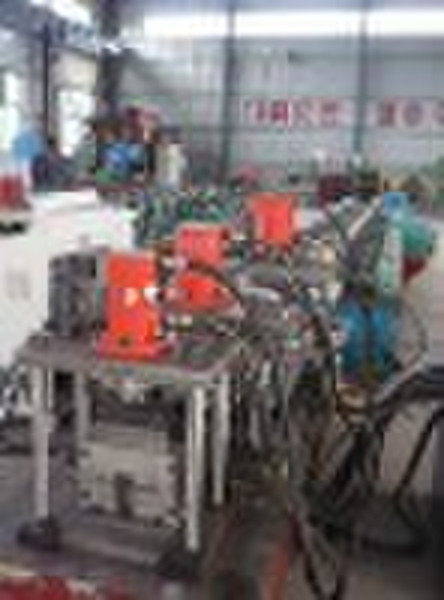

roll forming machine

Forming process De-coilerGuiderRoll formingpunching-cutting -tolength Equipment structure It consists of de-coiler, forming machine, correction system, punching rack, punching die, cutting-to-length, electrical control system etc. Unit performance 1Machine capacity:width≤250mm, thickness:0.8-1mm 2Total power: about 19kw Each main part parameter: 1 De-coiler Material width:≤200mm material weight:≤1000kg material inner diameter:460510mm material outter diameter:≤1200mm 2Roll forming machine a,Roll forming rack: 22 sets b,The diameter of the roller axis:φ55mm, roller surface:250mm Material: 40Cr, quenching treatment HB280 c, Main power:15kw timing electromotor d,Material of roller :GCr15, Quenching,Hardness:HRC58-62º e,Assistant roller rack: 2sets 3 Adjust part: Turkey emendation type (three-dimensional emendation) 4 Punching device Punching die: Cr12Mov, quenching treatment 5 cutting-to-length cutting system Hydraulic cutting, Hydraulic pumping station electromotor power: 5.5KW
