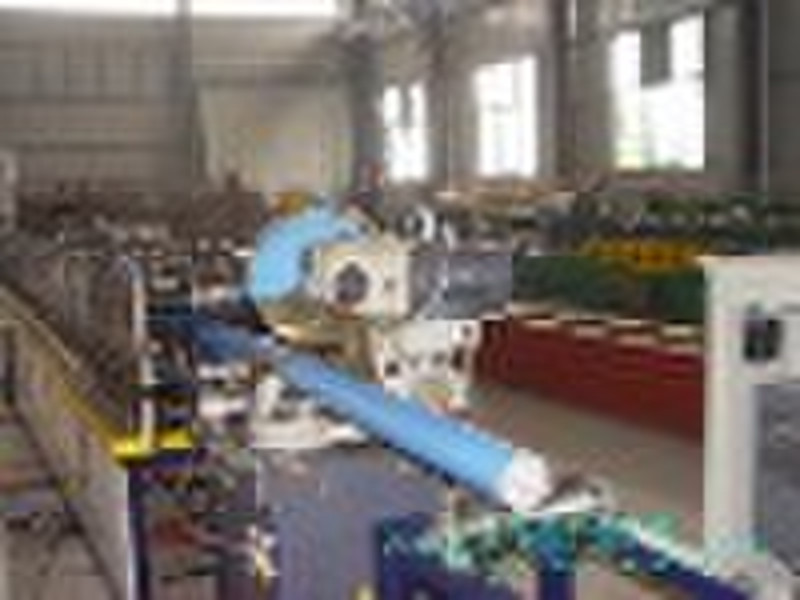

water-drop pipe forming machine

Roll forming craftwork coilerRoll formingcutting -to -lenghcollection table Equipment structure .It is consisted with passive decoler, main forming machine, corrector device, positioning and cutting section, collection table, electrical control panel etc. C. unit performance Machine capacity:width≤333mm, thickness:0.4-0.6mm Product speed: 0-10m/min Total power: about10.5kw Occupy ground area: length 15m x width 2.5m D. Each part main parameter: Decoiler: decoiler, Inner expanding type, capacity:2T Rack: dragon type, material:HT200 Roll forming rack: 16 sets The diameter of the roller axis:φ60mm, roller surface:320mm Material: 40Cr quenching treatment HB280 Main power: 11kw Material:GCr15, Quenching,Hardness:HRC58-62º auxiliary roller rack: 4sets 3cutting-to-length Hydraulic pressure cutting, Hydraulic pressure pumping station electrical machinery power: 3KW
